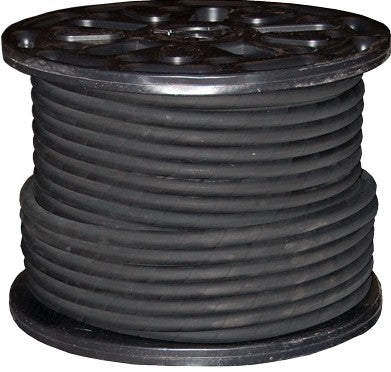

100R16-08 328' ROLL

Specifications:
    • Hose I.D.  1/4
    • Hose O.D.  0.59
    • Rated W.P.  5,000
    • Min. Burst  23,000
    • Min. Bend  4.0
    • Coupling Series  STD, W, K2

SAE R2S

Recommeded for: High pressure hydraulic oil lines

Tube: Oil resistant syntheic rubber

Reinforcement:  Two high tensile steel wire braid

Cover:  Abraison, ozone and weather resistant synthetic rubber

Meets flame resistant MSHA designation

Temperature Range:  -40°F to +212°F (+250°F Max)

Specifications:
    • Hose I.D.  1/4
    • Hose O.D.  0.59
    • Rated W.P.  5,000
    • Min. Burst  23,000
    • Min. Bend  4.0
    • Coupling Series  STD, W, K2

SAE R2S

Recommeded for: High pressure hydraulic oil lines

Tube: Oil resistant syntheic rubber

Reinforcement:  Two high tensile steel wire braid

Cover:  Abraison, ozone and weather resistant synthetic rubber

Meets flame resistant MSHA designation

Temperature Range:  -40°F to +212°F (+250°F Max)
