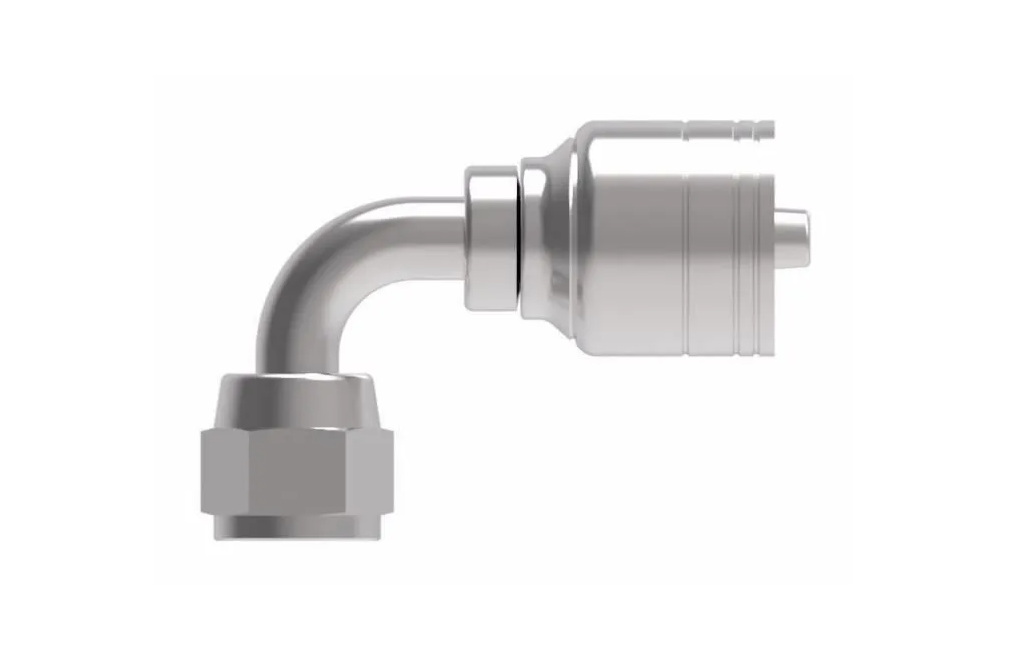

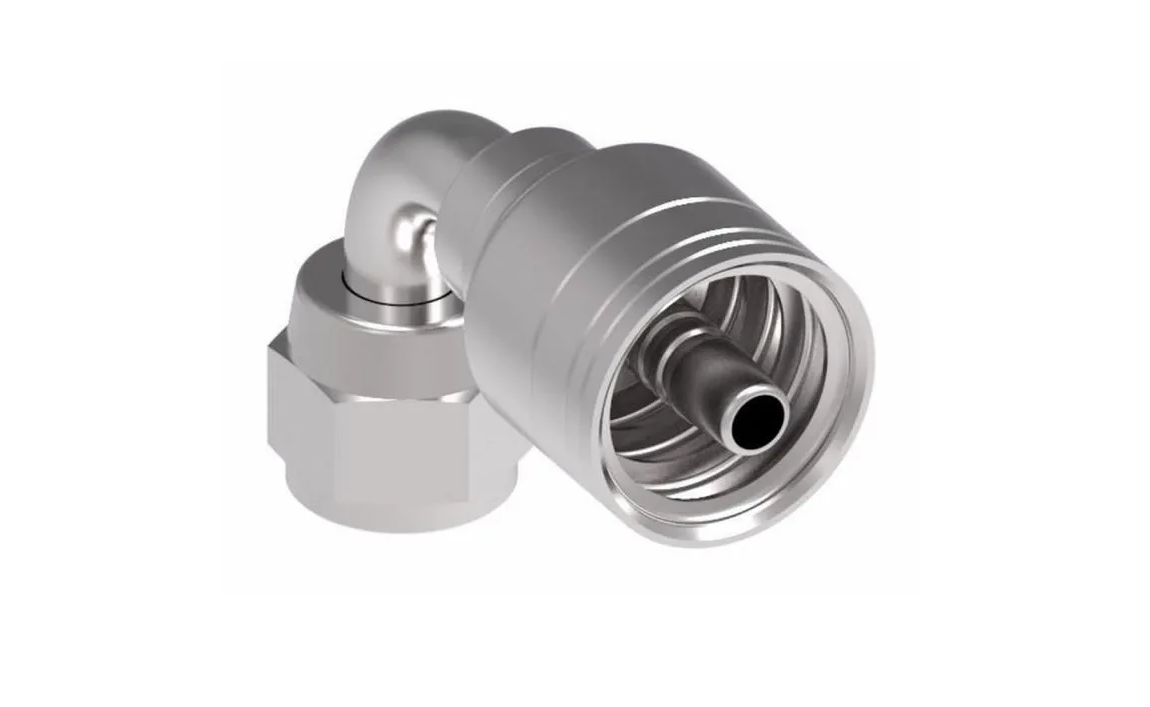

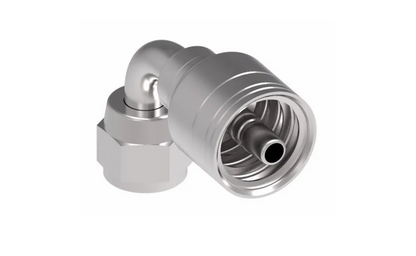

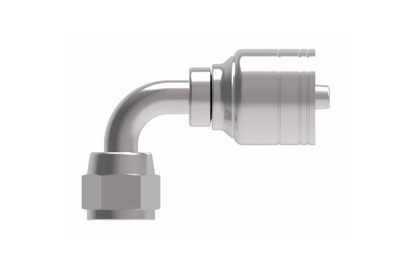

The female JIC swivel 90° bent tube is a type of hydraulic fitting used to change the direction of fluid flow in a hydraulic system by 90 degrees. It has several key features:
Female JIC: This end of the fitting has a flared internal socket that accepts a male JIC fitting.
Swivel: The fitting allows for swiveling connection, providing flexibility in routing hydraulic lines and reducing stress on hoses.
90° Elbow: The fitting bends the flow of fluid by 90 degrees.
Long Elbow: Compared to a standard elbow, the long elbow offers more clearance and easier installation in tight spaces.
Applications:
This fitting is commonly used in various hydraulic applications where a directional change with swivel functionality is needed for connecting hoses and pipes.
JIC Female (37 Swivel), 90° Long Drop - 200 Series
