$18.29

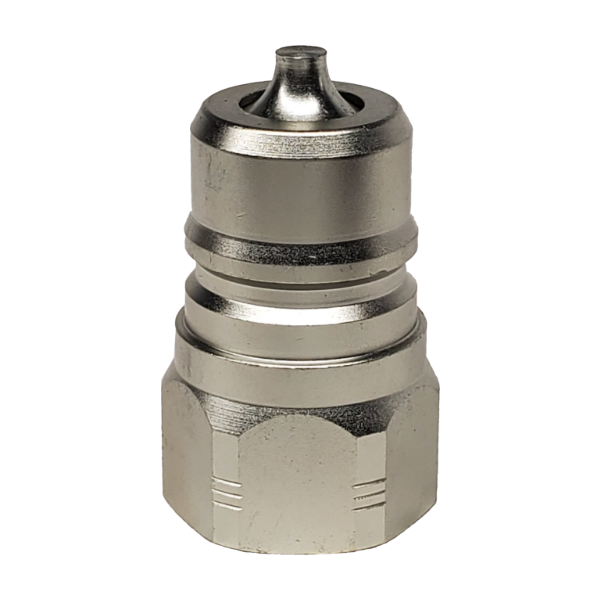

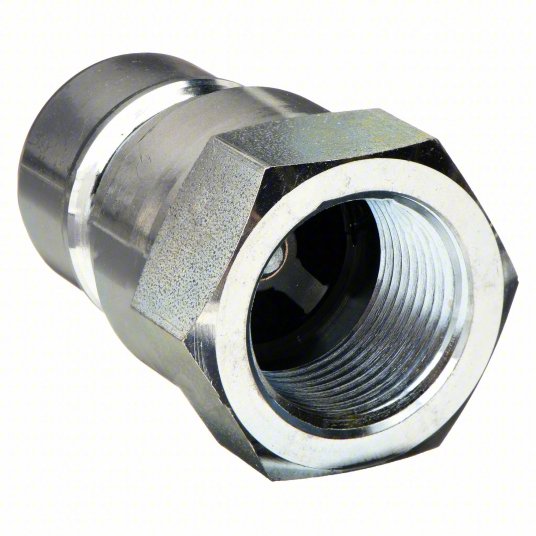

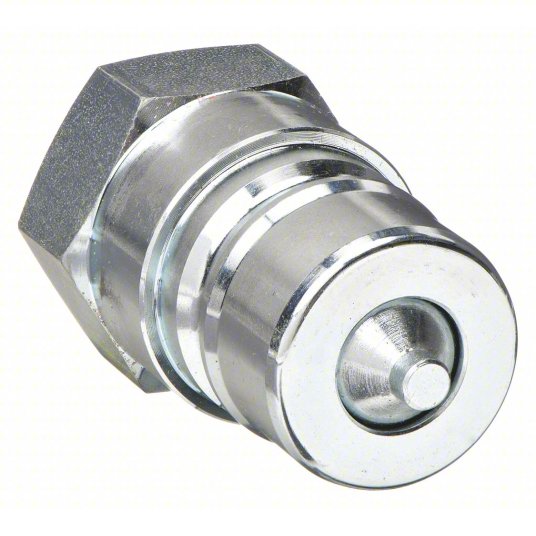

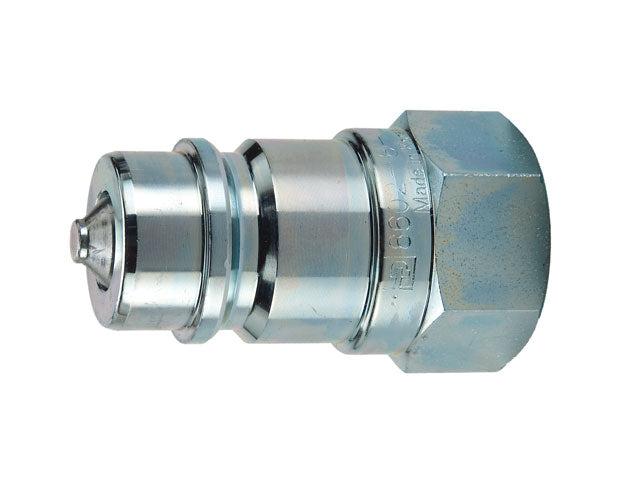

The 6600 Series are versatile for use in a wide range of hydraulic applications where fluid lines require connection and disconnection for equipment operation or maintenance
• Accepts ISO 7241-1, Series A compliant nipples
• Poppet valves and a metal perch to maintain valve alignment and prevent flow checking
• Coupler sleeve and nipple body are hardened to be damage resistant
• Standard end configurations include female pipe and straight thread ORB
• Protective zinc plating with clear trivalent chromate finish
Applications include:
• Snowplows
• Truck trailer connections
• Mobile applications
• Attachments
Connection Thread Size (inch): | 3/4 - 14 |
Maximum Operating Pressure: | 4000 psi |
Body Size: | 3/4 inch |
Flow Rate: | 28 Gal/min |
Seal Material: | Nitrile |
Media: | Hydraulic |
Specifications Met: | ISO 7241-1 series A |
Coupling Half: | Nipple |
Minimum Operating Temperature: | -40 °F |
Maximum Operating Temperature: | 250 °F |
Valve Type: | Poppet |
Body Material: | Steel |
Thread Size: | Female |
Connection Type: | NPTF |
Plating Type: | Zinc with clear trivalent chromate |
Application: | Hydraulic | general purpose |
SKU: 12/12/6602
Categories: Home page, HYDRAULIC QUICK COUPLERS
The 6600 Series are versatile for use in a wide range of hydraulic applications where fluid lines require connection and disconnection for equipment operation or maintenance
• Accepts ISO 7241-1, Series A compliant nipples
• Poppet valves and a metal perch to maintain valve alignment and prevent flow checking
• Coupler sleeve and nipple body are hardened to be damage resistant
• Standard end configurations include female pipe and straight thread ORB
• Protective zinc plating with clear trivalent chromate finish
Applications include:
• Snowplows
• Truck trailer connections
• Mobile applications
• Attachments
Connection Thread Size (inch): | 3/4 - 14 |
Maximum Operating Pressure: | 4000 psi |
Body Size: | 3/4 inch |
Flow Rate: | 28 Gal/min |
Seal Material: | Nitrile |
Media: | Hydraulic |
Specifications Met: | ISO 7241-1 series A |
Coupling Half: | Nipple |
Minimum Operating Temperature: | -40 °F |
Maximum Operating Temperature: | 250 °F |
Valve Type: | Poppet |
Body Material: | Steel |
Thread Size: | Female |
Connection Type: | NPTF |
Plating Type: | Zinc with clear trivalent chromate |
Application: | Hydraulic | general purpose |
