Mr. Hydraulic

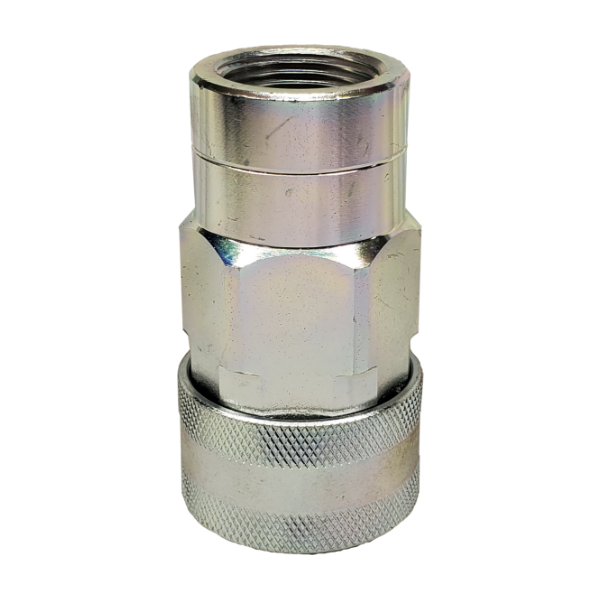

Steel Quick Couplers (hydraulic) 4000 psi ISO 7241 series A 6601-12-12

SKU: 6601-12-12

Categories: Home page, Mr Hydraulic, Quick Couplers

The 6600 Series are versatile for use in a wide range of hydraulic applications where fluid lines require connection and disconnection for equipment operation or maintenance

Features

• Accepts ISO 7241-1, Series A compliant nipples
• Poppet valves and a metal perch to maintain valve alignment and prevent flow checking
• Coupler sleeve and nipple body are hardened to be damage resistant
• Standard end configurations include female pipe and straight thread ORB
• Protective zinc plating with clear trivalent chromate finish

Applications include:
• Snowplows
• Truck trailer connections
• Mobile applications
• Attachments

Technical Specifications

Connection Thread Size (inch): 3/4 - 14
Maximum Operating Pressure: 4000 psi
Body Size: 3/4 inch
Flow Rate: 28 Gal/min
Seal Material: Nitrile
Media: Hydraulic
Specifications Met: ISO 7241-1 series A
Coupling Half: Coupler
Minimum Operating Temperature: -40 °F
Maximum Operating Temperature: 250 °F
Valve Type: Poppet
Sleeve Type: Manual sleeve
Lock Type: Locking balls
Body Material: Steel
Thread Size: Female
Connection Type: NPTF
Plating Type: Zinc with clear trivalent chromate
Application: Hydraulic | general purpose
