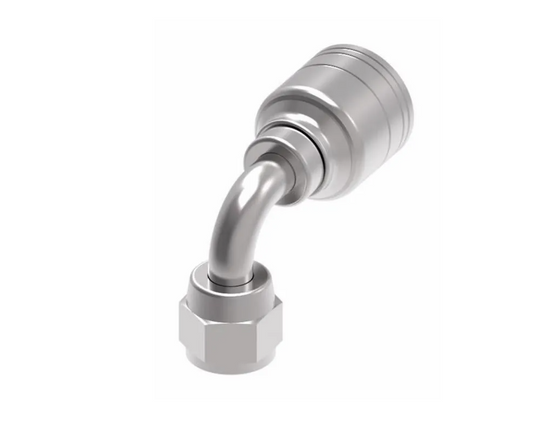

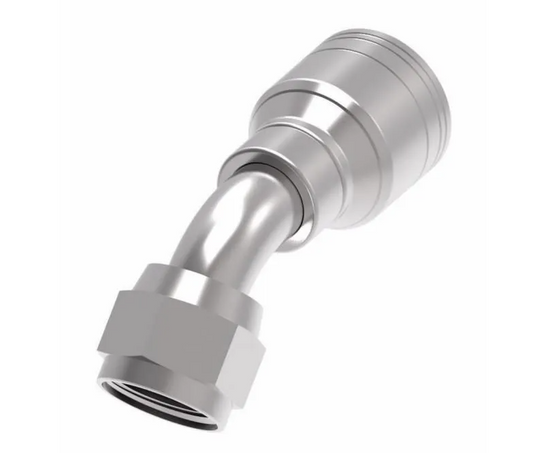

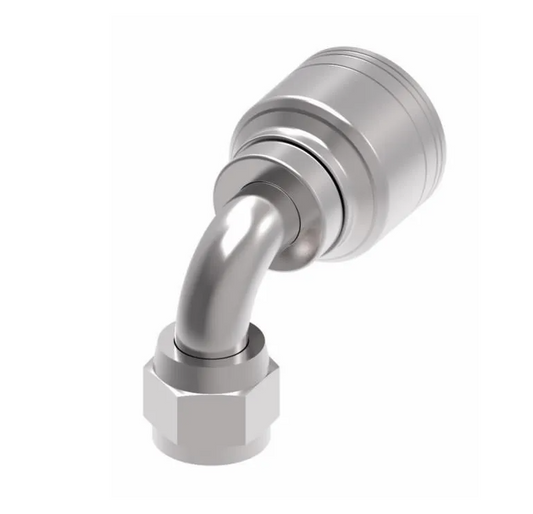

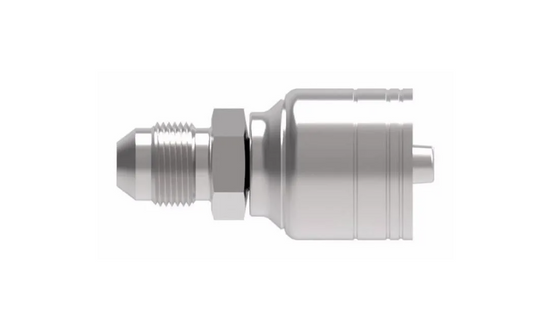

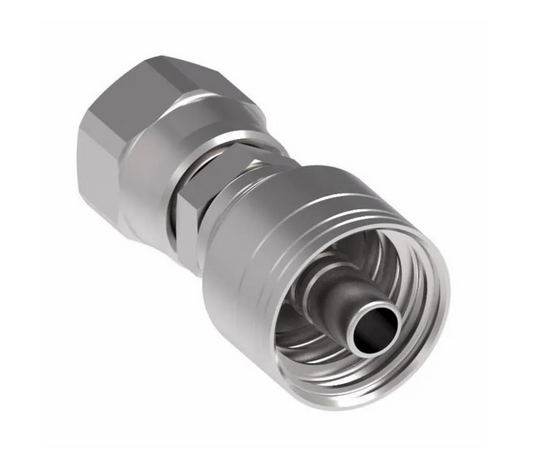

Z SERIES 37° JIC HOSE FITTINGS

Collapsible content

1. What are hydraulic hose fittings?

Hydraulic hose fittings are connectors that link hydraulic hoses to various components in hydraulic systems like pumps, valves, cylinders, and more. They are engineered to create a secure, leak-proof connection to allow hydraulic fluid to flow safely under high pressure.

2. What types of hydraulic hose fittings exist?

There are many categories but there are 3 main categories that are commonly used. Permanent fittings like crimp and swaged fittings, reusable fittings like bite-type, flange, and o-ring face seal fittings, and Z Series or zero-leak/zero-spillage fittings. Z Series fittings have a special valve that automatically shuts off fluid flow when disconnecting the hose to prevent spillage.

3. What materials are used for these fittings?

The most common materials are carbon steel, stainless steel, brass, and aluminum. The material choice depends on things like the operating pressure and temperature, as well as compatibility with the hydraulic fluid being used.

4. How do I pick the right hose and fittings?

You'll want to consider the operating pressure and temperature range, compatibility with your hydraulic fluid, the hose size and type (braided, spiral, etc.), whether it's for a mobile or stationary application, and any environmental exposure like abrasion or chemicals. Getting the right fit is important.

5. What's a hydraulic hose assembly?

A hose assembly is essentially a pre-made unit with a hydraulic hose and the fittings already attached to both ends. They're convenient and provide consistent quality since they're manufactured under controlled conditions.

6. How do I properly install hydraulic hose fittings?

Installing hydraulic fittings is crucial to ensure the safety of the environment where they are being used, to install it you should start by cutting the hose squarely, prepare the hose and fitting per the manufacturer instructions, insert the fitting into the hose end, secure it using the recommended method like crimping or swaging, then inspect and test for leaks.

7. When should hoses and fittings be replaced?

Before replacing a hydraulic fitting you must check what are the operating conditions like pressure, temperature, vibration, contamination exposure, the manufacturer recommendations, and your inspection/maintenance schedule. Regular inspections are a must to ensure everything is operating safely and efficiently.

8. What commonly causes hose or fitting failures?

Common failures include incorrect installation, excessive pressure or temperatures, incompatible materials, normal wear and tear, chemical or contaminant exposure, and vibration or impact damage. Properly inspecting and maintaining your hydraulic system can help to prevent these issues.
